Have you ever picked up a product where everything on the packaging felt just right? The logo sat perfectly on the front, the product information was neatly aligned on the sides, the barcode was easy to scan, and every fold came together seamlessly. Now think of another package where the text was cut off, the design wrapped awkwardly around a corner, or important information was lost in a fold. One package exudes a premium and trustworthy feel, while the other instantly conveys an impression of poor quality.
The difference isn’t always in the graphics or the printing; it often begins much earlier, during the packaging design process, during the layout of dieline.
Every well-crafted box, carton, or sleeve you see on the shelf is a result of a carefully planned blueprint that tells manufacturers exactly where the package should be cut, folded, creased, and assembled. This blueprint or the layout is called a dieline. Although almost every brand manager, packaging designer, and printer works with dielines at some stage of product development, few fully understand the influence of the dieline in the appearance, functionality, and manufacturability of the final package.
The Simple Definition
A dieline is a flat, two-dimensional template that shows exactly where a package will be cut, folded, scored, perforated, and glued during the manufacturing process. It is the structural guide that ensures both the packaging and the printed artwork come together exactly as proposed.
Think of it as the blueprint of a package. Just as an architect relies on a blueprint before constructing a building, packaging designers and manufacturers rely on a dieline before producing a box. It ensures every panel, fold, graphic, and piece of information ends up in the right place, resulting in packaging that is visually appealing, functional, and production-ready.
Why Dielines Matter for Brand Packaging
Imagine spending months designing a perfect package, only to discover that your logo is hidden under a fold, the product name is partially trimmed, or the barcode is placed where it cannot be scanned. These issues don’t just affect the appearance of the package; they impact customer perception, retailer acceptance, and ultimately, your brand’s credibility.
A well-prepared dieline eliminates these risks by ensuring every design element is positioned exactly where it should be before production begins. It helps prevent costly printing errors and reprints, keeps artwork, logos, product information, and regulatory content perfectly aligned, and creates a smoother approval process between brand teams, designers, and printing partners. Instead of spending time fixing avoidable mistakes, everyone involved can focus on delivering the product to market faster.
Dieline is not just another technical file exchanged between designers and printers; it is one of the most important documents in the entire packaging development process. A single error in the dieline can lead to thousands of misprinted packages, delayed product launches, and unnecessary production costs, ultimately affecting your brand consistency, production efficiency, and the overall customer experience.

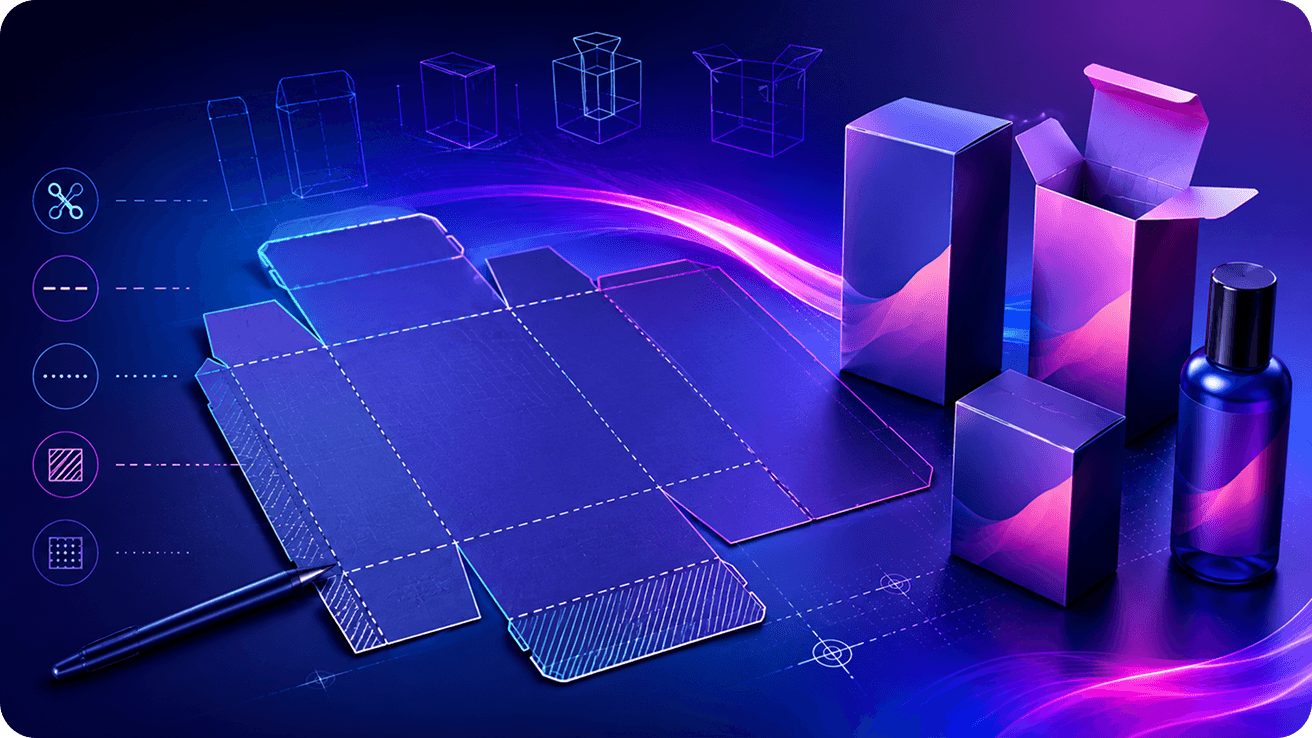

Key Components of a Dieline
Every packaging format has its own unique structure. But following a few standard components of dielines guide both the design and manufacturing process.
1. Cut Lines
Cut lines are the exact outline of the package. These are the well-defined paths where the printing material will be cut to create the final shape of the box, carton, label, or sleeve.
2. Fold (Score) Lines
Fold or score lines indicate where the package should bend during assembly. These lines ensure clean, accurate folds so the finished package takes the intended three-dimensional shape without damaging the printed artwork.
3. Bleed Area
The bleed is an extension of the artwork beyond the final cut line. It is an extra printing area that protects the package from ending up with unwanted white edges even in case if the cutting process shifts slightly during production.
4. Safe Zone
The safe zone is the area where all important design elements, like logos, product names, barcodes, and essential information, should be placed. Keeping critical content within this boundary ensures nothing gets trimmed off or disappears into folds during manufacturing of the packages.
Common Dieline Mistakes Brands Make
Most issues don’t become visible until the packaging reaches production, when correcting them becomes expensive and time-consuming, and even experienced teams make mistakes.
- Using an outdated or incorrect dieline provided by a printer or packaging supplier is one of the most common mistakes in the dieline. This happens because the packaging dimensions and structural designs vary from one product to another, and even a small mismatch results in an unusable design.
- Another mistake in the dieline template is placing content too close to fold lines or edges. The design, which may look perfect on a computer screen, can get distorted when folded and trimmed at the time of packaging.
- One of the costliest oversight mistakes made by the packaging and designing team is ignoring the bleed area. An insufficient bleed area can leave visible white borders on the packaging during the cutting process, even with minor variations, thus making the premium package appear poorly finished.
- Unaccountable for the structural difference between packaging types is another overlooked component of the dieline that brands make. For example, a design created for a straight tuck-end carton cannot simply be reused for a reverse tuck-end or auto-lock bottom box without adjusting the artwork to match the new dieline.
Dielines for Different Packaging Types
The purpose of a dieline is the same for every kind of package, i.e., to guide the cutting, folding, scoring, and assembly of a package. But, just as every building requires a different blueprint based on its purpose, size, and structural requirements, every type of packaging needs a dieline designed specifically for its form and function. Designing the right dieline for the right package ensures that the final product is visually appealing, structurally sound, and ready for efficient production.
Folding Cartons and Retail Boxes
Used across industries like electronics, personal care, and consumer goods, folding cartons require dielines that account for multiple panels, glue flaps, tuck ends, and locking mechanisms. The artwork must align perfectly across every panel so that the finished box presents a seamless visual experience from every angle.
Pouches
Pouches have variations such as stand-up pouches, flat pouches, and zipper pouches, and each has a different structural design. Their dielines include various elements like sealing areas, gussets, zipper placements, tear notches, and bottom folds. So, while designing dielines for these, designers must carefully position branding and product information to ensure everything’s visible once the pouch is filled and sealed.
Labels
Whether it’s a wrap-around label for a bottle, a front-and-back label, or a full-body shrink sleeve, label dielines focus on precise dimensions, application areas, and finishing requirements. These dielines also consider how the label will conform to curved or irregular surfaces without distorting the artwork or hampering the content on the labels.
Cartons for Pharma, FMCG, and Food Packaging
Industries such as pharmaceuticals, food, and FMCG have additional regulatory and functional requirements. Apart from accommodating structural folds, their dielines need to provide adequate space for mandatory information such as ingredient lists, dosage instructions, nutritional facts, barcodes, manufacturing details, and compliance markings, without compromising the overall design.
Although these packaging formats appear different, they all rely on one principle: the dieline must be tailored to the structure of the package.
Manipal Digital, Building Packaging Right, From the Dieline Up
At Manipal Digital, we begin our packaging journey long before the first sheet goes to print. Every packaging project starts with a thorough understanding of the product, packaging format, material specifications, and production requirements. This enables us to develop dielines that serve as a reliable foundation for both design and manufacturing.
Our team works closely with packaging manufacturers and print partners to ensure every dieline aligns with the exact production specifications. The collaborative approach helps us reduce artwork revisions, avoid costly production errors, and accelerate approvals by ensuring that design, pre-press, and manufacturing teams work from the same accurate template. Whether it’s a retail carton, pharmaceutical packaging, food carton, label, or flexible pouch, our focus remains on delivering packaging that performs as well in production as it does on the shelf.
To learn more about how we create production-ready packaging solutions, explore our Packaging Services, where dieline development is an integral part of our end-to-end packaging workflow.
